Dongguan Longsun Material Technology Co.,Ltd

Data cables

Product description

HTPVSi is a kind of silicone rubber thermoplastic elastomer which is easy to process and shape. Compared with ordinary thermoplastic elastomer, HTPVSi has more excellent coating and unique human aesthetic touch, and has excellent mechanical properties, wear resistance, high and low temperature resistance.

Performance characteristics

Good mechanical properties, wear resistance, high and low temperature resistance, processability and silky touch, recyclable, green environmental protection. Excellent adhesion to polar substrates such as PC, ABS, nylon or non-polar substrates such as PE and PP.

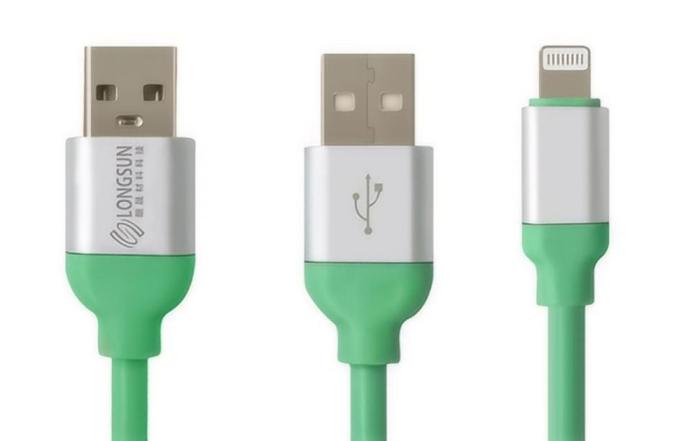

Can be used for data cables, earphone cables and other electronic products flexible accessories

Typical physical properties

Physical Performance	Typical value	Unit	Test Method
Hardness (5S)	75	Shore A	ASTM D-2240
Specific gravity	1.12	g/cm³	ASTM D-792
Melt index (190 ℃/5kg)	11.4	g/10min	ASTM D-1238
Tensile strength	26.4	MPa	ASTM D-412
Elongation at break	704	%	ASTM D-412
Tear strength	74	kN/m	ASTM D-624
Taber abrasion		mm³	DIN-53516
Compression set (22h/23 ℃)	16	%	ASTM D-395
Compression set (22h/70 ℃)	58	%	ASTM D-395

The above values are only representative reference values and are not used as quality inspection standards.

Forming conditions

Screw back zone temperature	170-190 ℃
Screw middle zone temperature	190-200 ℃
Temperature in front area of screw	200-215 ℃
Nozzle temperature	175-205 ℃
Screw speed	30-120rpm
Screw length-diameter ratio	20:1-26:1
Mold temperature	20-50 ℃
Processing melt temperature	200℃
Injection temperature	medium to fast

The forming conditions in the table are for reference only! The specific molding process depends on the specific product of the customer!
